Services from HY GRATING

HY INDUSTRY is specialized in designing and manufacturing kinds of machines and products like aluminum diamond grating, aluminium louvres to fulfill customers' needs. We have our own R&D team, which makes us more professional to serve our customers. If you have any in need, please contact us through 86-535-6501817  or marketing@hygrating.com.

All of our machines are designed by ourselves, which means we could maximize use them to produce all kinds of products.

Our products are also designed and manufactured with our own machines, we could provide a wide range of construction products, not only our regular products, we could also produce as customers’ needs. We have been exporting to many countries for years, our products are popular with good reputation globally.

Lasing Cutting

Besides of our regular products, we could provide lasing cut service. It is a quick, precise, safe and environmental way to cut metal products.


Surface Treatment

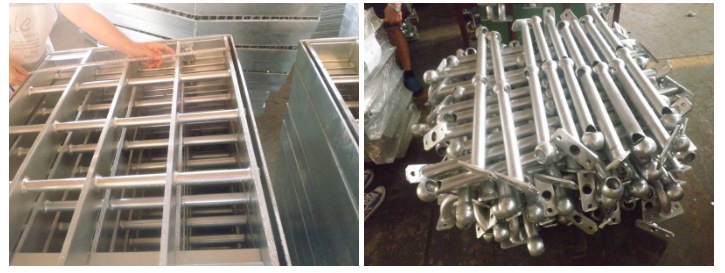

A. Hot-Dip Galvanizing
Hot-dip galvanizing is the best surface treatment way for steel grating&stair tread, steel stanchions. Under the environment ranging from PH6 to PH12.5, the protective layer will be formed on the zinc coating, which has good corrosion resistance.  It could reach 100μ thickness and steel grating with 100μ hot-dip galvanizing has a anticipated life time of 40-100 years according to different environment.

B. Powder Coating
Powder coating is available for steel grating&stair tread, but it is usually used for aluminum grating&aluminum louver. There are many colors for your reference, and 10 years or 15 years warranty is generally adopted.

C. Clear Anodizing
Clear anodizing is the most common way for aluminum products, like swaged aluminum grating&swaged aluminum louver, aluminum fin louver, aluminum stair tread, aluminum railings&stanchions and so on. 20μ-25μ thickness anodizing is usually recommended.
